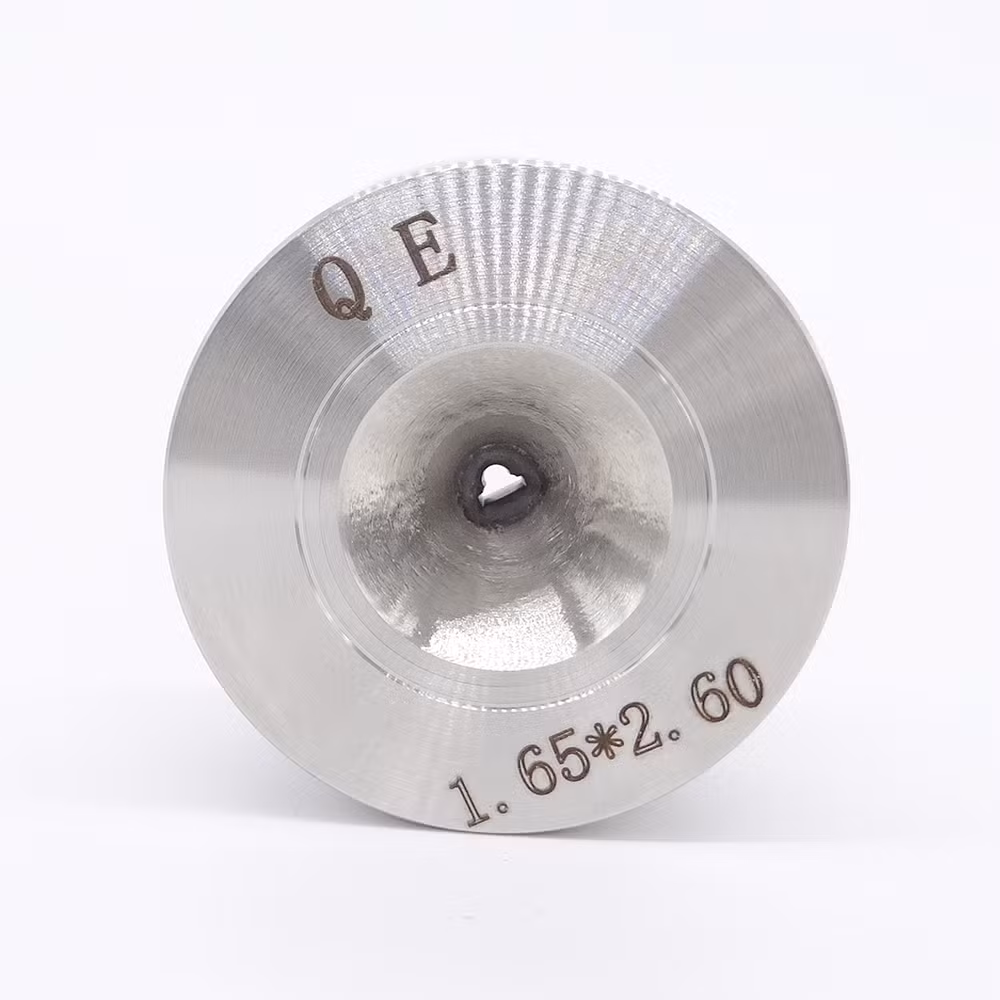

| Shaped wired drawing die | Mini Height:0.1 Mini Corner Radius:0.025 Mini Width:0.1 Mini Tolerance:0.005 |
| Polycrystalling diamond die | PCD dies has longer working life,and when hole becomes bigger,it can be fixed by many times to get recycle use. |
| Mono diamond wire drawing dies | Mono diamond's feature is similar with natural diamond. Drawing surface is very fine,good polishing.Hole can keep well in round shape when drawing.It's used for fine metal wires. |
| Natural Diamond Die | Natural diamond die,with good wear resistance and excellent quality,can makewire with precise size and fine surface.it's a good choice for high-precision wire drawing. |
| Name | Material | Hole | For drawing Metal | Tolerance |
| wire drawing dies | ND Die | 0.015-0.600 | gold, silver,copper,etc.. | ±0.0005mm |
| MD Die | 0.015-2.000 | gold, silver,copper,etc.. | ±0.0005mm | |
| PCD Die | 0.05-20 | Stainless steel, carbon, Iron, copper, aluminum, etc. | ±0.005mm |
Selection imported and domestic high-quality mold processing, support hexagonal, square, flat square, triangle, circle, and various special-shaped hole requirements, suitable for drawing copper flat wire, square wire, zipper flat wire, stainless steel special-shaped wire drawing, has long service life, high precision, strong wear resistance and other characteristics.
| Item | Hole(mm) | Usage |
| ND die | 0.01-0.9999 | Precious metal wire, such as copper, gold, silver |
| 0.1-0.59999 | ||
| 0.6-0.99999 | ||
| 1-1.69999 |
Natural diamond wire drawing dies is very higher abrasive-resistant and beautiful wire surface drawing. It is used for all fine metal wire to reduce wastage, improve the surface of drawing. Hole range is 0.01-1.5mm.
| Item | Hole(mm) | Usage |
MD die | 0.01-0.9999 | Precious metal wire, such as copper, gold, silver |
| 0.1-0.59999 | ||
| 0.6-0.99999 | ||
| 0.6-0.99999 | ||
| 1-1.69999 |
Mono diamond's feature is similar with Natural diamond. Drawing surface is very fine, good polishing. Hole can keep well in round shape when drawing. It is used for fine metal wires. Like copper, golden wire. silver wire and so on.
| Item | Hole(mm) | Case(mm) | Usage | PCD size |
| PCD die | 0.1-0.5 | 25*12 | Soft metal wire | 2510 |
| 0.501-1.000 | 25*12 | 3215 | ||
| 1.101-1.500 | 25*12 | 5225 | ||
| 1.501-1.700 | 25*12 | 5235 | ||
| 1.701-2.100 | 25*12 | 6040 | ||
| 2.101-2.800 | 30*15 | 8040 | ||
| 2.801-3.000 | 30*15 | 9853 | ||
| 3.001-3.300 | 30*15/35*15/42*25 | 10*6 | ||
| 3.301-3.500 | 30*15/35*15/42*25 | 12*6 | ||
| 3.501-4.000 | 35*15/40*20/45*25 | 13*8 | ||
| 4.001-5.000 | 35*20/40*22/45*25 | 14* | ||
| 5.001-6.000 | 40*22/40*25/50*27 | 16*10 | ||
| 6.601-7.000 | 40*25/45*25/50*27 | 18*10 | ||
| 7.001-7.500 | 50*27 | 20*10 | ||
| 7.501-8.500 | 50*27 | 22*10 |
PCD diamond die has long drawing life, has widely application range, can be repaired many times, specifications range 0.08-15mm.
