Big Double Twist Bunchers
For up to 19 wires (120sqmm) of copper
and aluminum stranding and insulated
cores laying-up
Compacting during process by die or
rollers
Overhead pull-out basket-payoff or
multi-head driven bobbin payoff stand

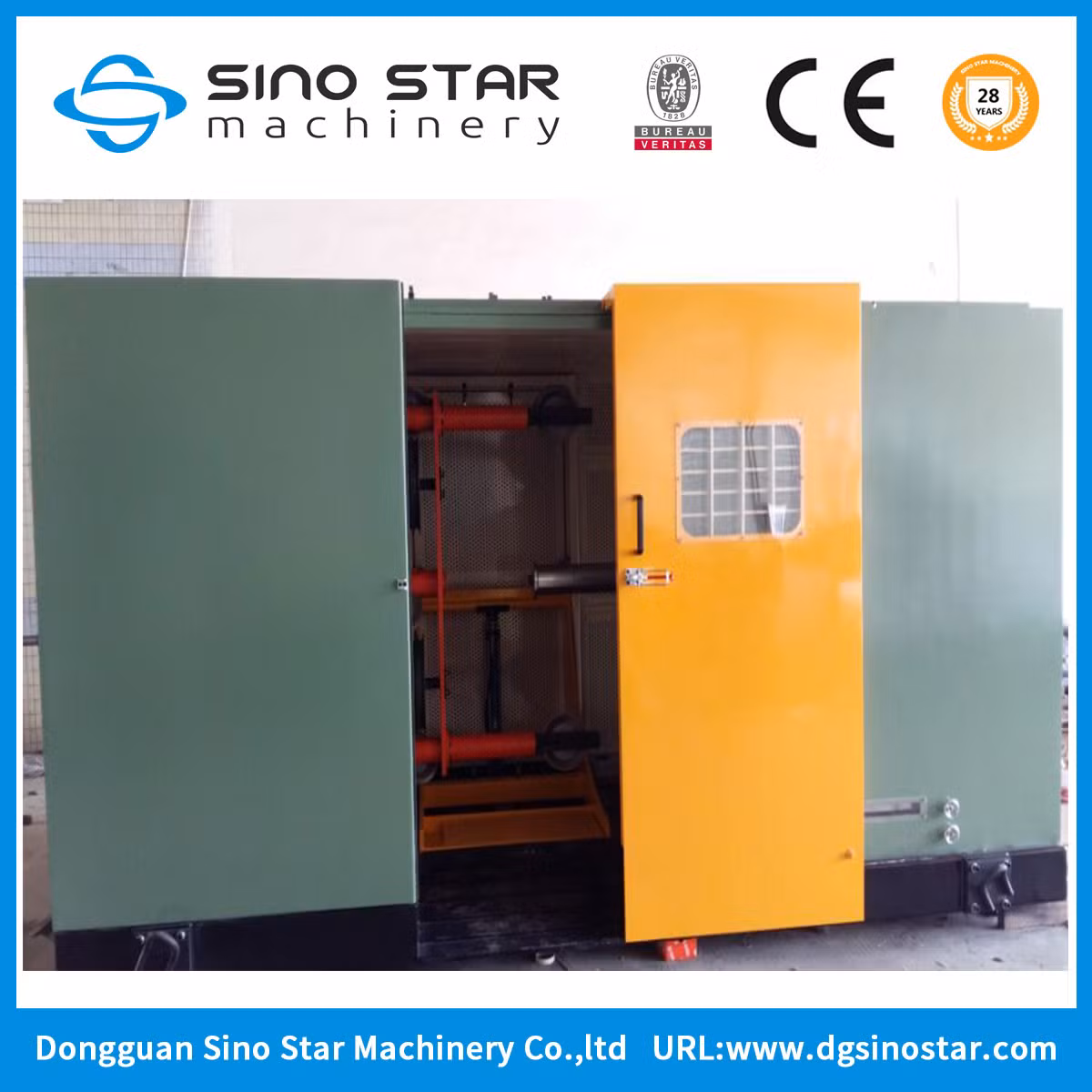

Big Double Twist Buncher
Separate motor driven
Big section stranding
Transmit & motor at front
1000 1250 1600 [mm] bobbin Φ
[ / ] 1200 - 500 [rpm] max rpm
[ / ] 2400 - 1000 [twist/min] productivity
[ / ] 200 - 90 [m/min] max linear speed
[%] 10% [%] linear speed tolerance
[ ] 4X25 - 4X50 [sqmm ] insulated wires range
[ ] 50 - 120 [sqmm ] cross section range
