Key Specifications/Special Features:

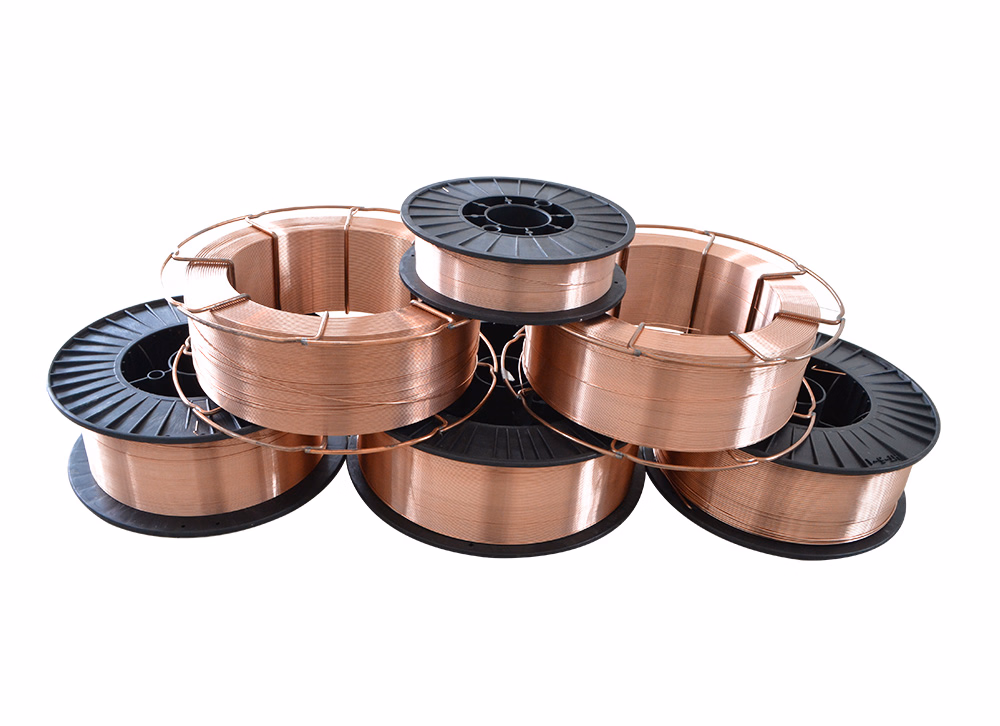

MIG welding wire (ER70S-6)/MIG wire
Product description:
ER70S-6 MIG welding wire Specifications:
1) 0.8-1.6mm
2) Applications:
For welding of 500MPa grade low carbon steel and low alloy structure steel
Packing: 5/15/20kg spool packing, 250kg drum packing
Precision layer wound on spool, each spool in a box, then boxes on wooden pallets, mechanical properties tensile strength 550MPa yield strength 430 elongation 30 AKV (J) 85 (-29ºC)
More product features:
Trademark: SK metal
Model: ER70S-6
Standard: AWS A5.18 ER70S-6
Productivity: 3000 T/M
Origin: China
Minimum order quantity: 1 pallet
Packaging & Shipping
Packing Size: 275mm* 275mm* 105mm 300mm*300mm*105mm
Outer Packing:1spool/ctn.Every spool product is strongly packed by carton box with antirust paper inside.
Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft
Our Services
24 hours online service
One year warranty
Sample can be suuplied in 3 days
OEM and ODM are available
Trial order are availabe
MIG welding wire (ER70S-6)/MIG wire
Product description:
ER70S-6 MIG welding wire Specifications:
1) 0.8-1.6mm
2) Applications:
For welding of 500MPa grade low carbon steel and low alloy structure steel
Packing: 5/15/20kg spool packing, 250kg drum packing
Precision layer wound on spool, each spool in a box, then boxes on wooden pallets, mechanical properties tensile strength 550MPa yield strength 430 elongation 30 AKV (J) 85 (-29ºC)
More product features:
Trademark: SK metal
Model: ER70S-6
Standard: AWS A5.18 ER70S-6
Productivity: 3000 T/M
Origin: China
Minimum order quantity: 1 pallet
| Package | ||
| Specification | Wire Tray | Weight |
| Φ1.0~1.6mm | D100mm D200mm D270mm D300mm K300mm | 1kg, 5kg, 15kg, 17kg, 18kg, 20kg |
| Wire Chemical Composition (%) | |||||||
| C | Mn | Si | P | S | Cr | Ni | Cu |
| 0.06~0.15 | 1.40~1.85 | 1.80~1.15 | ≤0.025 | ≤0.035 | - | - | ≤0.50 |
| Deposited Metal Mechanical Properties | |||
| Yield Strength σ0.2(Mpa) | Tensile Strength σb(Mpa) | Elongation δ5% | AKV Imapact Energy (J)(-40ºC) |
| ≥420 | ≥500 | ≥22 | ≥90 |
| Diameter of wire(mm) Wleding Current(A) | |||
| Φ1.0 | Φ1.2 | Φ1.4 | Φ1.6 |
| 40~140 | 50~220 | 80~350 | 120~450 |
| Matters needing attention: |
| 1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package. 2.Welding shall be removed before welding surface oil, rust,water and other impurities. 3.The CO2 gas protection, CO2gas purity 99.98%. 4.CO2 welding protective gas flow rate should be controlled at 20~25L/min. 5.Wire extension length should be controlled in the range of 15~25mm. 6.Preheatig before welding to weld 150ºC~300ºC, 700ºC~740ºC tempering treatment only after. |
Packaging & Shipping
Packing Size: 275mm* 275mm* 105mm 300mm*300mm*105mm
Outer Packing:1spool/ctn.Every spool product is strongly packed by carton box with antirust paper inside.
Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft
