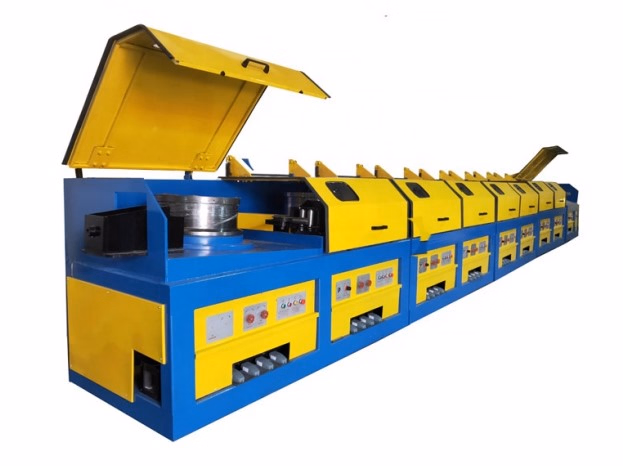

LZ-560 High speed straight wire drawing machine sold to Tanzania
1. Description:
Straight wire drawing machine is reduce big diameter to smaller diameter for low carbon wire.
2. Features:
2.1 Each pot has its own gear combination axis.
2.2 Inverter control, drawing speed is adjustable, saving 30% electricity;
2.3 Drawing drum painted with Tungsten Carbide, service life is extended much longer.
2.4 Water cooling system to lower drum temperature.
2.5 Complete electrical system, perfect protection system and water seal cooling system,
2.6 Finished wire is widely used for standard parts (e.g. welding rod, wire nail, screw, etc), lead, wire rope, spring etc.
3. Technical parameter:
Model: LZ560; Speed: 16m/s, 11tons/8hours or more faster.
Inlet diameter, max.6.5mm. Outlet Diameter, Min1.6mm
Drawing path: 1-11; Pot Diameter.: 560mm.
Total compress:Max.91.54%; Strength tensile: Max. 600kg/mm2;
Unit motor: 1800KGS; Overall size: 5*1.5*1.3M.
4. Auxiliary equipment.
1) Hydraulic pay-off, 2) Peeling machine, 3) Tension stand, 4) Trunk take-up machine, 5) Drawing dies.
6) (Optional) Gas/Electrical furnace, Water tank drawing machine from 2mm to 0.3mm.
5. Related machinery:
Electrical furnace/ Gas Furnace for wire annealing.
Water tank drawing machine from 2.0-min 0.7mm wire.
Nail making machine.
Our machine catalogue:
Steel grating welding machine, Reinforcing mesh welding machine;
Fence mesh welding machine, Poultry cage mesh welding machine;
Electrical welded mesh machine, Pneumatic welding machine;
Wedge wire screen welding machine, Animal cage welding machine;
Chain link fence machine, Hexagonal wire mesh machine;
Field fence machine, Expanded metal mesh machine;
(Concertina razor) Barbed wire machine, Gabion machine, etc.
![Lz-560 High Speed Straight Wire Drawing Machine Sold to Tanzania](https://img3.grofrom.com/pech/a413b353732e9e03dd1278ee7cd73ec8.webp)
![Lz-560 High Speed Straight Wire Drawing Machine Sold to Tanzania](https://img3.grofrom.com/pech/ca247c0df95841778b2748f9a047d7e7.webp)
![Lz-560 High Speed Straight Wire Drawing Machine Sold to Tanzania](https://img3.grofrom.com/pech/2d663aa59c4acaaf2739c551fc20474f.webp)
![Lz-560 High Speed Straight Wire Drawing Machine Sold to Tanzania](https://img3.grofrom.com/pech/87a3fdbfa23cb4705c73e3ed7a8a5e72.webp)
![Lz-560 High Speed Straight Wire Drawing Machine Sold to Tanzania](https://img3.grofrom.com/pech/63e24d3dadd1e1d271a2c0d9550231ec.webp)
wire drawing machine, straight wire drawing machine, drawing drum, bull block, drawing block, drawbench, continuous drawing machine,
