2019 New Big Area Single head Coiling/Taping/Flat/Cording Embroidery Machine Computerized

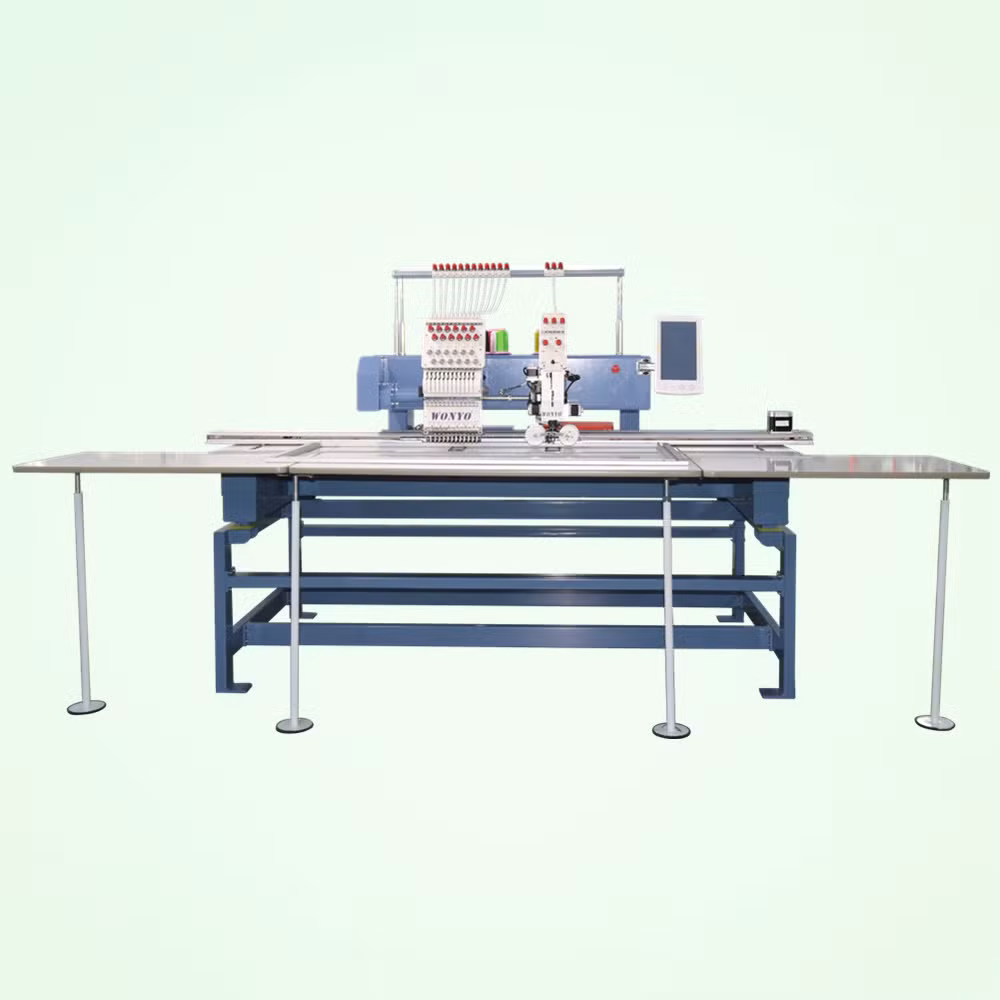

1.Machine pictures
| Specification | ||
| Multi Function | T-shirt/ Flat/ Garment/ Jacket/ Leather/ 3D Embroidery | |
| Speed | Working Speed: 1200RPM | |
| Embroidery Area | 500*1200mm per head | |
| Motor | Main motor | Servo Motor * 1 |
| X-Y Axis | Stepper Motor * 2 | |
| X, Y Driving | Reinforced high speed linear guide rail | |
| Control Board | Standard: 10" True Color LCD Screen | |
| Rotary Hook | Japanese Rotary Hook | |
| Memory Capacity | Standard: 20,000,000 Stitches matched with 200 patterns | |
| Max. Color Change | Auto start and color change, 200 times color change settled | |
| Design Input | By U disk, USB and Transmission from PC to Control System | |
| Design Format | Compatible with designs of Tajima(DST), Barudan(DSB) and etc. | |
| Safety Device | Standard: Emergency Stop | |
| Languages | 16 languages: Chinese, English, French, Russian, Dutch, Spanish, Portuguese, Turkish, German, Arabic, Thai, Vietnamese | |
| Main Parts | Japanese Rotary Hook, Germany Groz-Beckert Needles, Italy Brand Belt | |
| Embroidery Trimming | Automatic trimming | |
| Voltage | AC110-220V, adaptable for any voltage, 50-60HZ | |
| Optional Device | Sequin, Double Sequin, Boring, Cording, Laser trace Device, 8-in-1 Hoop Set,Shoes Device | |
| Control System | |
| Automatic trimming | YES |
| Automatic cutting | YES |
| Automatic color change | YES |
| Thread broken detecting | YES |
| Memory size | 20,000,000 stitches/200 embroidery design patterns |
| Font/letter software | YES |
| Error code | YES |
| Real-time stitching | YES |
| Different languages setting | YES |
| USB port, network transferring design | YES |
| Led light | YES |
2. Functions
Flat, garments, cording, ribbon
3. Machine basic information
This machine with design software .
with 2 years warranty. life time after sale service.
free online training, and 7 days free training in my factory.
Machine will be assembling via Mr.zhu the chief engineer of wonyo.
It will take around 1 month can finished.
The machine color are available basic on your requirements.
Also the machine brand, we can basic on your requirement to design.
4. Machine size
It is 2250 * 1280 *1400 mm, it is around 700kg.
Max working size is 500*1200 mm.
