Basic Info.
Model NO.
LH-900T
Control Type
PLC
Customized
Customized
Condition
New
Automatic Grade
Certification
CE, ISO9001, SGS
Type
Casting Machine
Material
Cast Iron
Diecasting Metal
Aluminum, Zinc, Brass, Magnesium
Color
Gray
Brand
Longhua
Programming
Proprietary Intellectual Property Rights
Injection Speed
8m/S
Claming Force
9000kn
Tie Bar Diameter
180mm
Dia Opening Stroke
760mm
Injection Force
750MPa
Plunger Force
295mm
Casting Pressuer
154/121/81MPa
Die Height
350-950mm
Ejector Force
315kn
Ejector Stroke
180mm
Trademark
Longhua
Transport Package
Simple Package
Specification
LH-900T
Origin
Anhui, China(Mainland)
HS Code
84543010
Product Description
New design high efficiency aluminium die casting machine price aluminium gravity casting machine
LH series of standard parameter table (900 T)
| Items | Unit | Specification |
| HYDRAULIC WORKING PRESSURE | MPa | 14 |
| CLAMPING FORCE | KN | 9000 |
| SPACE BETWEEN TIE BARS | mm | 910*910 |
| Tie Bar Diameter | mm | ¢180 |
| DIE OPENING STROKE | mm | 760 |
| INJECTION FORCE(intensify) | KN | 750 |
| Plunger launch distance | mm | 295 |
| Injection position | mm | -- 250 |
| PLUNGER DIAMETER | mm | ¢80 ¢90 ¢100 |
| INJECTION STROKE | mm | 760 |
| Casting pressure (intensify) | MPa | 154/121/81 |
| Casting Fiange Protrusion | mm | 20 |
| Casting Fiange Diameter | mm | 200 |
| (40Mpa) MAX CASTING AREA UNDER 40Mpa | CM2 | 2150 |
| lnjection Weight(Al) | Kg | 7.1/9/14 |
| Die Height(Min--Max) | mm | 350~950 |
| EJECTOR FORCE | KN | 315 |
| EJECTOR STROKE | mm | 180 |
| Motor Capacity | Kw | 30 |
| Machine Dimensions (L*W*H) | m | 9.1*2.4*3.3 |
| Referential Machine Weight For Uplifting | T | 40 |
| Oil Tank Capacity | L | 1500 |
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Certificate

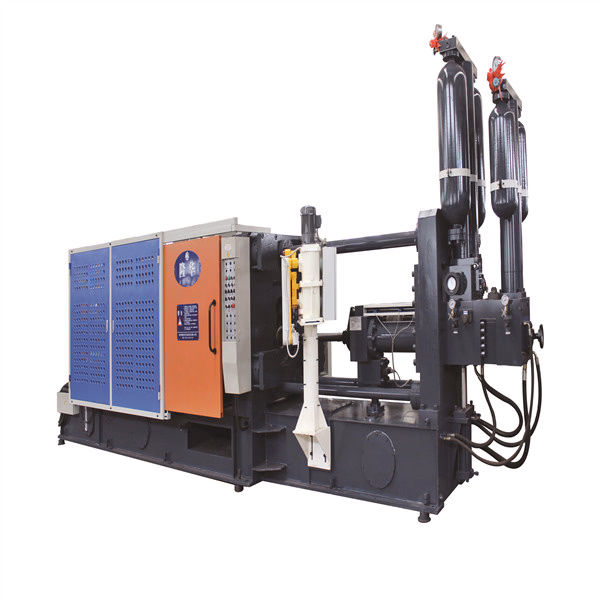

Die casting machine details display
Company Introduction
Bengbu Longhua , founded in 1982, is a professional high-tech enterprise engaged in the design, manufacture and sale of cold chamber die casting machines, die casting peripheral equipments, oil field equipments and new energy equipments (natural gas, nitrogen, wellhead, casing, raw materials, liquefied petroleum gas, special gas, compressor).
Cooperative R&D Unit
Longhua intelligent die casting machine is jointly developed with hefei institute of material science, Chinese academy of sciences, with automatic system upgrade, one-click operation, zero fault, making die casting more efficient, more precise, more intelligent and more durable.
